CELESTION Tf0615 100w 8ohm Lf Ferrite

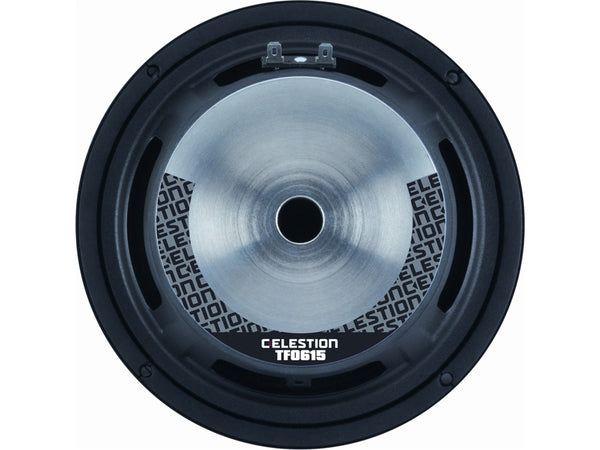

Celestion – TF0615 100W 8ohm – LF Pressed Steel Chassis Loudspeaker – Ferrite
Altoparlante da 6″ con chassis in acciaio stampato, magnete in ferrite, bobina da 1.5″, potenza 100Watt, impedenza 8ohm

Caratteristiche
– 6″ mid-range driver providing 95dB sensitivity and 100Wrms (AES standard) power handling
– 1.5″ high temperature copper voice coil wound on polyimide former for increased reliability
– Rigid chassis design for maximum energy transfer
– Vented magnet assembly for enhanced cooling
– Achieves optimal performance in compact enclosures
– Ideal for 2-way systems

Specifiche Generali
Nominal diameter: 152mm/6in
Power rating(1): 100Wrms
Continuous power rating(2): 200W
EIA power rating(3): 150W
Nominal impedance: 8ohm
Sensitivity(4): 95dB

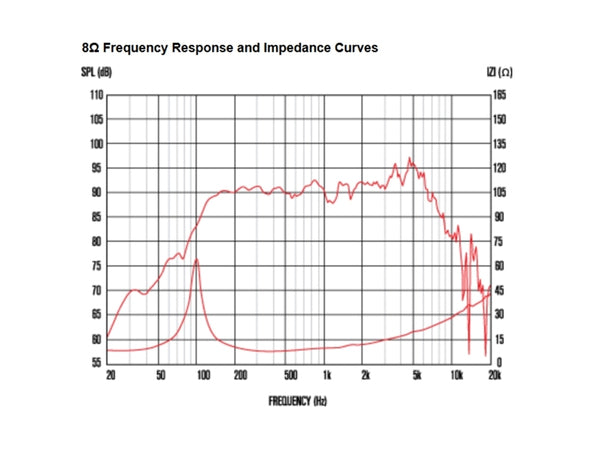

Frequency range: 85-6000Hz
Voice coil diameter: 38mm/1.5in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.8kg/17oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth sealed
Suspension: Single
Xmax(5): 2.5mm/0.1in
Gap depth: 6mm/0.24in
Voice coil winding width: 6.5mm/0.26in

Parametri di Thiele-Small
D: 0.14m/5.51in
Fs: 107.2Hz
Mms: 11.397g/0.402oz
Qms: 5.83
Qes: 0.682
Mmd: 10.316g/0.364oz
Qts: 0.611
Re: 7.25ohm
Vas: 6.49lt/0.23ft3
BI: 9.03Tm
Cms: 0.193mm/N
Rms: 1.317kg/s
Le (at 1kHz): 0.5mH

Informazioni di Montaggio
Overall diameter: 178mm/7.01in
Overall depth: 74mm/2.91in
Cut-out diameter: 147mm/5.79in
Mounting slot dimensions: Ø 4.3mm/0.17in
Number of mounting slots: 4
Mounting PCD range: 168.5mm/6.63in
Unit weight: 1.4kg/3.1lb
